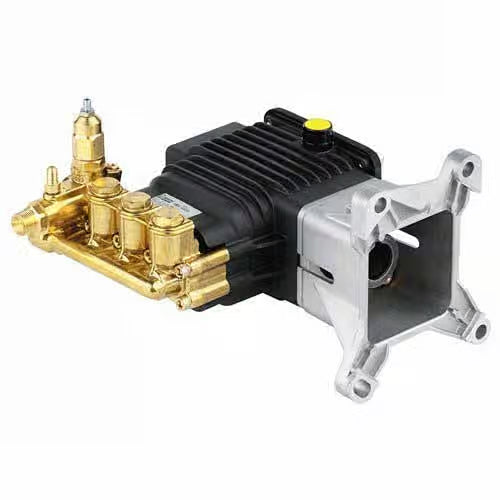

AR North America Pump RSV4G40HDF40EZ Pressure Washer Pump 4 GPM, 4000 PSI

4 GPM Pressure Washer Pump

AR North America RSV4G40HDF40EZ is a gas-driven plunger pump designed for direct drive applications. It has a 1" D style hollow shaft that couples with gas engines. This 4 GPM pressure washer pump's crankcase is made with a die-cast material and the head is made with brass. Cooling fins are anodized for maximum heat tolerance. The shaft is engineered to handle a maximum speed of 3400 RPM. Materials used to construct the seals in this 4000PSI 4GPM pressure washer pump handle a maximum fluid temperature of 140 degrees Fahrenheit for applications requiring hot water. The pump produces a maximum flow rate of 4 GPM and handles a maximum pressure of 4000 PSI.

Specifications:

• Max GPM: 4
• Max L/Min: 15.1
• Max PSI: 4000
• RPM: 3400
• Shaft Size: 1"
• Shaft Version: D
• Shaft Type: Hollow
• Inlet: 3/8" F
• Outlet: 3/8" F
• Max Temp: 140 deg F
• Max Bar: 275
• Power EBHP: 11
• Bore Dia mm: 15
• Stroke mm: 9.4
• Crankshaft ID Stamp: 7
• Oil Capacity (oz): 16
• Weight: 14
• KR
