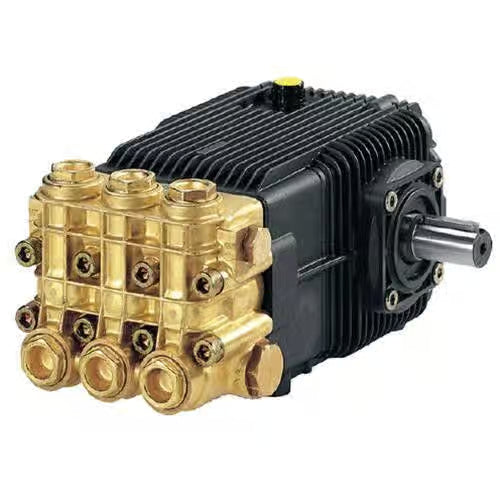

AR North America SXWA55G50N Triplex Plunger Pump, 5.5 GPM, 5000 PSI

AR North America SXWA55G50N Triplex Plunger Pump, 5.5 GPM, 5000 PSI

$1,050.00
$1,285.00 $1,050.00
Sale Sold out
Crankcase Capacity: 32 oz.
Max PSI: 5000
RPM: 1750
Max GPM: 5.5
Inlet Port: 1/2 inch
Max Temperature: 140 degrees F
Bore: 18 millimeter
Stroke: 17.2 millimeter
Shaft Diameter: 24 millimeter

Product Description

AR North America 1750 RPM Hollow Shaft Pump

Durable horizontal gas engine triplex plunger pump features a die-cast body and brass head. Thick solid ceramic plungers provide for long life for internal components, while anodized precision cast cooling fins optimize heat dissipation. One-piece connecting rods are made of special alloy aluminum, oversized for strength and load disbursement. Oversized needle bearing on the drive sides and ball bearings on the non-drive side for proper shaft alignment. Water tight valve cages allow positive seating provide longer life of your pump.

Features:

  • NEMA 56 Flange for easy connection to power supply.
  • 24 millimeter solid shaft

Specifications:

  • Maximum Volume: 5.5 GPM
  • Maximum Pressure: 5000 PSI
  • Maximum Temperature: 140 degF
  • Inlet Port: 1/2" F
  • Outlet Port: 3/8" F
  • KR
