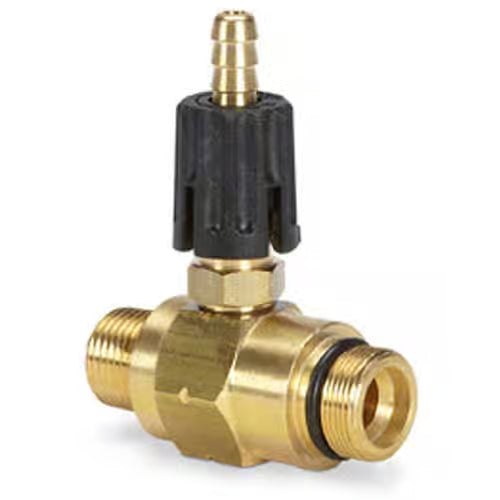

CAT Pumps 7182 Adjustable Brass Chemical Injector

CAT Pumps 7182 Adjustable Brass Chemical Injector

$59.99
$59.99
Sale Sold out

Technical Specifications

Inlet Port: 3/8 inch
Max GPM: 4
Max PSI: 3500
Max Temperature: 195 degrees F
Outlet Port: 3/8 inch
Orifice: 1.8

Product Description

2-4 GPM Discharge Line Injector

The CAT Pumps 7182 Chemical Injector is a brass body injector designed to draw chemical only under low pressure. The amount of chemical draw can be changed by turning the adjustment collar completely into the body to stop draw, and approximately 1-1/2 turns counterclockwise for maximum chemical draw. This version is ideal for discharge line installation.

Dimensions: 2" x 1" x 3"

Specifications:

  • 2-4 GPM flow rate range
  • 1.8 mm nozzle orifice
  • 3500 PSI maximum pressure
  • 1/4" barb hose
  • 3/8" MNPT inlet and discharge ports
  • 195° Fahrenheit maximum temperature
  • Weight: .36 lbs.

Features:

  • Durable stainless steel orifice for chemical compatibility.
  • Convenient top handle for adjusting chemical draw.
  • Lightweight, compact unit.
  • Optional pump discharge line installation or mount directly to the unloader discharge port.
  • KR
