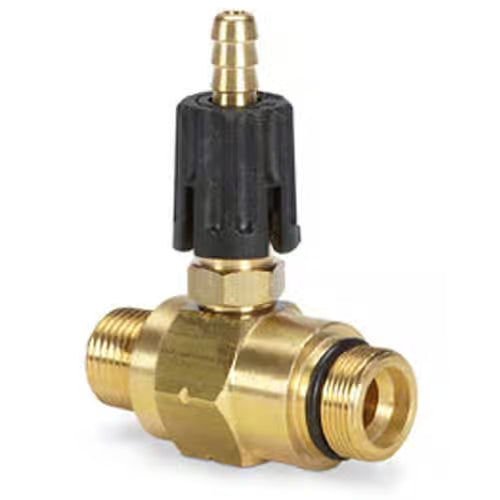

CAT Pumps 7192 Adjustable Brass Chemical Injector for Unloaders

CAT Pumps 7192 Adjustable Brass Chemical Injector for Unloaders

$40.99
$40.99
Sale Sold out

Technical Specifications

Max Temperature: 195 degrees F
Max PSI: 3500
Max GPM: 4
Outlet Port: 3/8 inch
Inlet Port: M18 x 1.0
Orifice: 1.8

Product Description

2-4 GPM Unloader Injector

The CAT Pumps 7192 Chemical Injector is a brass body injector designed to draw chemical only under low pressure. The amount of chemical draw can be changed by turning the adjustment collar completely into the body to stop draw, and approximately 1-1/2 turns counterclockwise for maximum chemical draw. This version is ideal for use with a variety of CAT unloaders.

Dimensions: 2" x 1" x 3"

Specifications:

  • 2-4 GPM flow rate range
  • 1.8 mm nozzle orifice
  • 3500 PSI maximum pressure
  • 1/4" barb hose
  • M18 x 1.0 inlet port
  • 3/8" MNPT discharge port
  • 195° Fahrenheit maximum temperature
  • Weight: .39 lbs.

Fits On These Unloaders:

  • 7500S
  • 7500XS
  • 7580
  • 7581
  • 7600S

Features:

  • Durable stainless steel orifice for chemical compatibility.
  • Convenient top handle for adjusting chemical draw.
  • Lightweight, compact unit.
  • Optional pump discharge line installation or mount directly to the unloader discharge port.
  • KR
