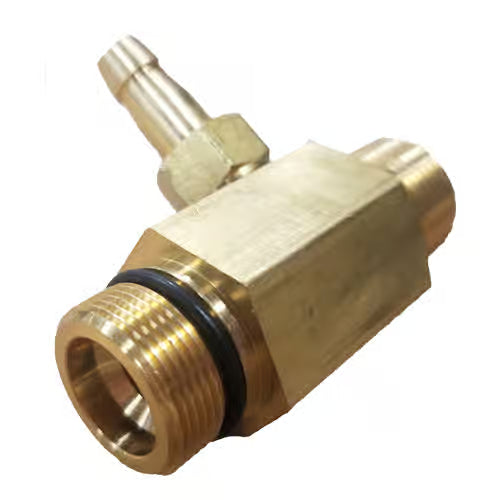

CAT Pumps 7232 Fixed Brass Chemical Injector

CAT Pumps 7232 Fixed Brass Chemical Injector

$54.99
$54.99
Sale Sold out

Technical Specifications

Max PSI: 250
Max GPM: 3
Orifice: 2.1 millimeter
Inlet Port: M18x1.0
Outlet Port: 3/8 inch

Product Description

Fixed Chemical Injector

CAT Pumps 7232 a fixed chemical injector for 3DX30GSI Pumps. Injector's orifice measures 2.1 mm. Constructed with brass for use in wet environments such as car washes. Handles a maximum flow rate of 3.0 GPM and a maximum pressure of 250 PSI. Equipped with an M18x1.0 inlet port and a discharge port measuring 3/8" NPTM.

Specifications:

  • Orifice: 2.1 mm
  • Maximum GPM: 3.0
  • Maximum Pressure: 250 PSI
  • Maximum Chemical Draw: 37.2 oz/min
  • Pressure Drop Across Injector at System Pressure (2500 PSI): 141 PSI
  • Material: Brass
  • Hose Barb: ¼"
  • Tapped Barb: 8/32" UNF
  • Inlet Port: M18x1.0
  • Discharge Port: 3/8" NPTM
  • Dimensions: 2 x 1 x 1.75"
  • Weight: 0.29 lbs.
  • Compatible with 3DX30GSI Pumps
  • KR
