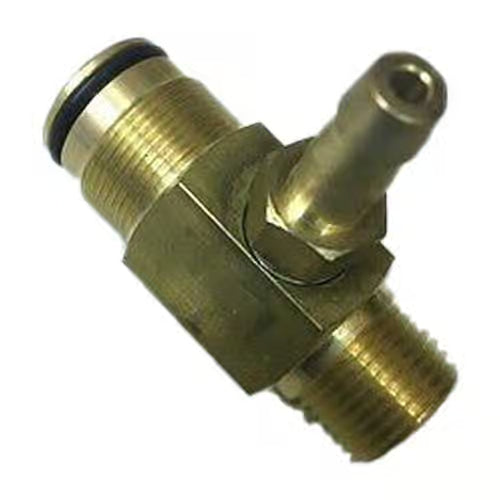

CAT Pumps 7242 Fixed Brass Chemical Injector

Fixed Chemical Injector

CAT Pumps 7242 a fixed chemical injector for 3DX29GSI Pumps. Injector's orifice measures 2.0 mm. Constructed with brass for use in wet environments such as car washes. Handles a maximum flow rate of 2.9 GPM and a maximum pressure of 280 PSI. Equipped with an M18x1.0 inlet port and a discharge port measuring 3/8" NPTM.

Specifications:

• Orifice: 2.0 mm

• Maximum GPM: 2.9

• Maximum Pressure: 280 PSI

• Maximum Chemical Draw: 35.3 oz/min

• Pressure Drop Across Injector at System Pressure (2500 PSI): 148 PSI

• Material: Brass

• Hose Barb: 1/4"

• Tapped Barb: 8/32" UNF

• Inlet Port: M18x1.0

• Discharge Port: 3/8" NPTM

• Dimensions: 2 x 1 x 1.75"

• Weight: 0.29 lbs.

• Compatible with 3DX29GSI Pumps
• KR
