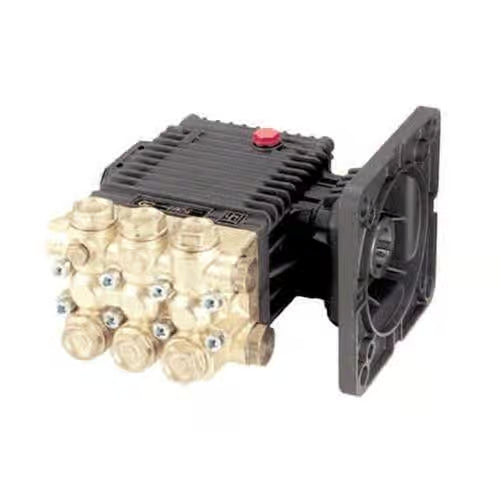

General Pump EZ2542E EZ Series 44E Triplex Plunger Pump, 4.2 GPM, 2500 PSI, Right Shaft

General Pump EZ2542E EZ Series 44E Triplex Plunger Pump, 4.2 GPM, 2500 PSI, Right Shaft

$559.00
$625.00 $559.00
Sale Sold out
Crankcase Capacity: 14 oz.
Max GPM: 4.2
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Bore: 18 millimeter
Stroke: 13 millimeter
Shaft Diameter: 28.5 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch

Product Description

General Pump EZ Series 44 E Pump

Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1.125" hollow shaft flanged for direct couple to electric motors (NEMA-184TC).

Dimensions: 8.8" x 8.8" x 6.3"

Features:

  • Solid ceramic plungers
  • Right shaft
  • NEMA 184C mounting flange for electric motors
  • Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil-bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves


Specifications:

  • Maximum Volume: 4.2 GPM
  • Maximum Pressure: 2500 PSI
  • Maximum Pump Speed: 1750 RPM
  • Maximum Fluid Temperature: 165°F
  • Inlet Port: 1/2"-14 BSPP-F
  • Outlet Port: 3/8"-19 BSPP-F
  • KR
