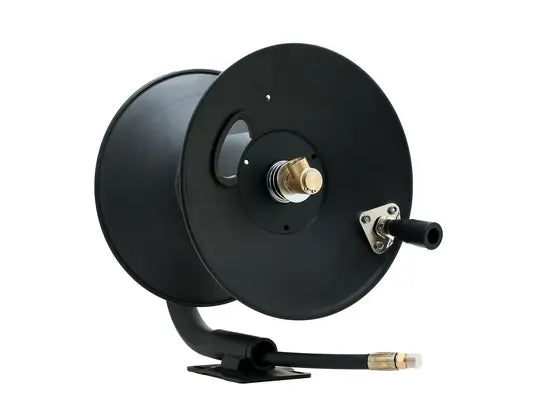

150' Hose Reel
150' Hose Reel
Couldn't load pickup availability
Simply slide the swivel end of your Kobrajet hose through the opening provided at the side of the reel core and install the 3/8" Male NPT threads into the 3/8" Female NPT threads of the swivel. Do not make a Quick Coupling joint at the swivel as there is not enough space and the bend in the line is too severe. Be sure to allow a small amount of slack at the swivel joint and use the red hose fastener provided to secure the hose at this joint. Using a Whip Line connected to your pump, connect to the 3/8" Male NPT hose reel inlet. When planning, add an extra foot to the distance so as not to bend the Whip Line too severely. Lastly, install the handle with the hardware provided.
Reel Dimensions
|
Measurement |
50' |
100' |
150' |
200' |
|
Height |
16.5" |
16.5" |
16.5" |
16.5" |
|
Total Width |
15" |
16.14" |
15" |
20.5" |
|
Depth |
13.5" |
13.5 |
13.5" |
13.5" |
|
Wall Width |
7.5" |
8.66" |
10" |
16" |
|
Core Width |
4." |
5.12" |
6.375" |
12.5" |
|
Core Diameter |
5.5" |
5.5" |
5.5" |
5.5" |
|
Inlet |
3/8" Male NPT - 9" Pigtail |
3/8" Male NPT - 9" Pigtail |
3/8" Male NPT - 9" Pigtail |
3/8" Male NPT - 9" Pigtail |
|
Base to Center of Core |
10" |
10" |
10" |
10" |
|
Mounting Bracket |
4 slots-4.25" W x 3.375" D |
4 slots-4.25" W x 3.375" D |
4 slots-4.25" W x 3.375" D |
4 slots-4.25" W x 3.375" D |
|
Hole Diameter |
0.375" x 2.2" Slot |
0.375" x 2.2" Slot |
0.375" x 2.2" Slot |
0.375" x 2.2" Slot |
|
Pin Lock |
Yes |
Yes |
Yes |
Yes |
|
Mounting Hardware |
None |
None |
None |
None |
